1.1 Introduction
The instrument uses microcomputer control and digital converter (DSC), and adopts digital beamforming (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity tracking (DRA), real-time point-by-point dynamic receiving focusing (DRF) and other technologies, The image of the whole machine is clear, stable and high resolution.
Image gray scale 256 levels.
Real-time and freezing of images can be realized.
Backfat can be measured with one key.
Using 5.6-inch TFT-LCD display, programmable device (FPGA) and surface mount technology (SMT), the whole machine is small in size and light in weight.

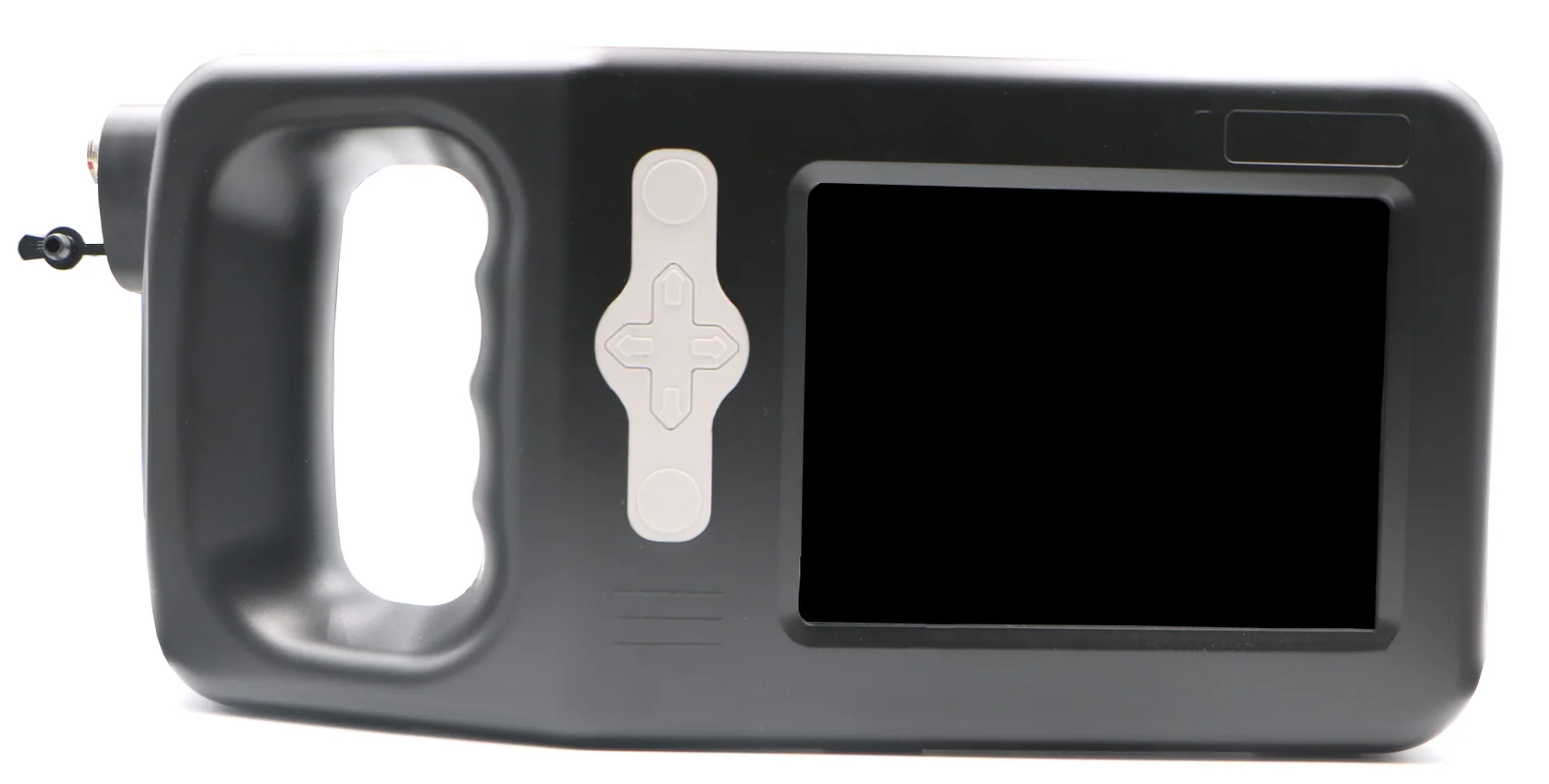

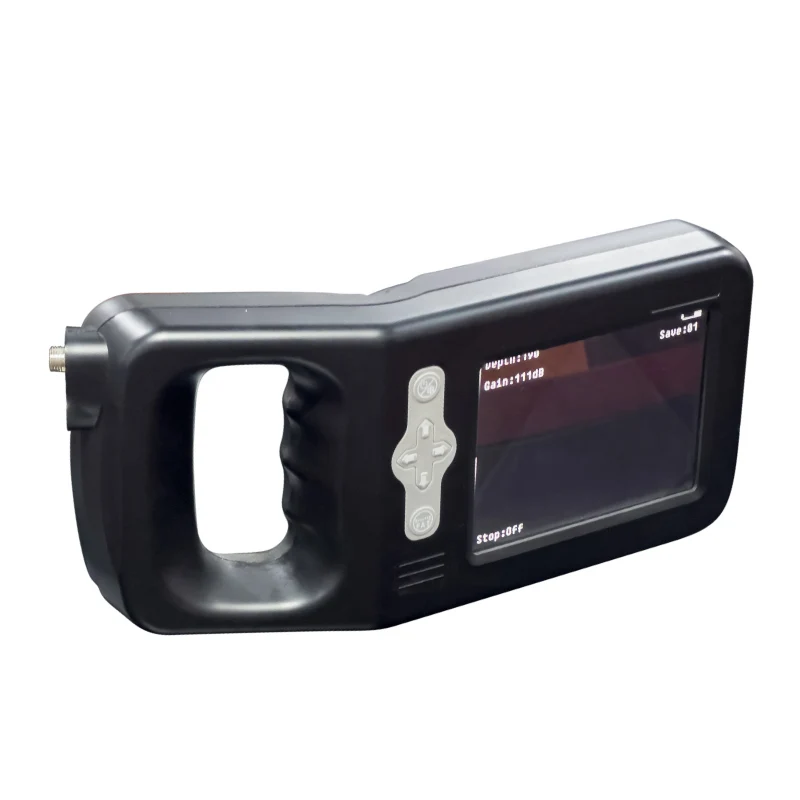

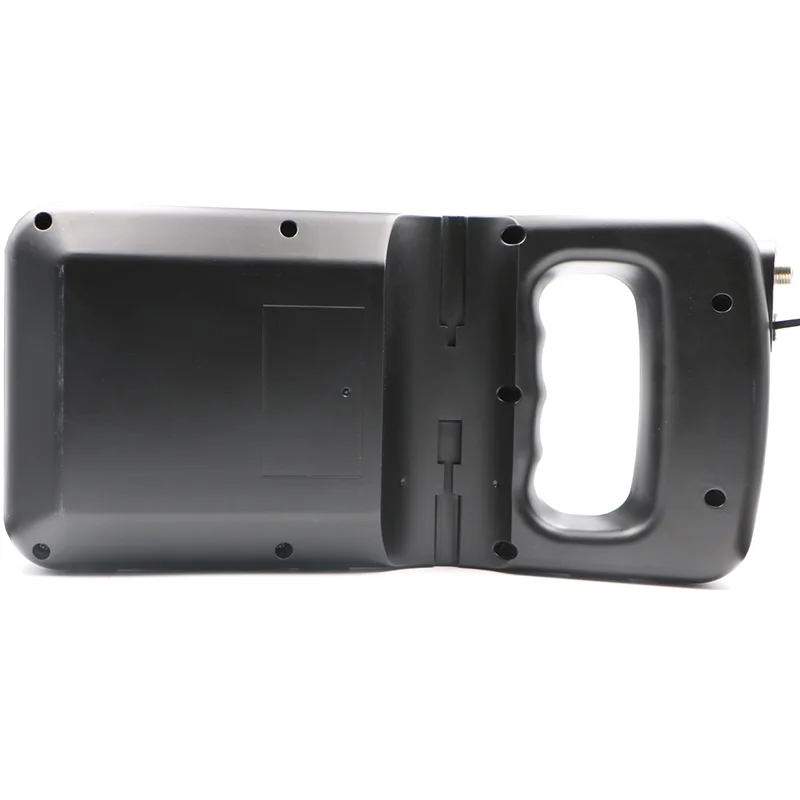

Injection molded shell, animal mechanical hand-held structure, comfortable hand feeling, relieve operation fatigue, and facilitate out-of-home diagnosis.

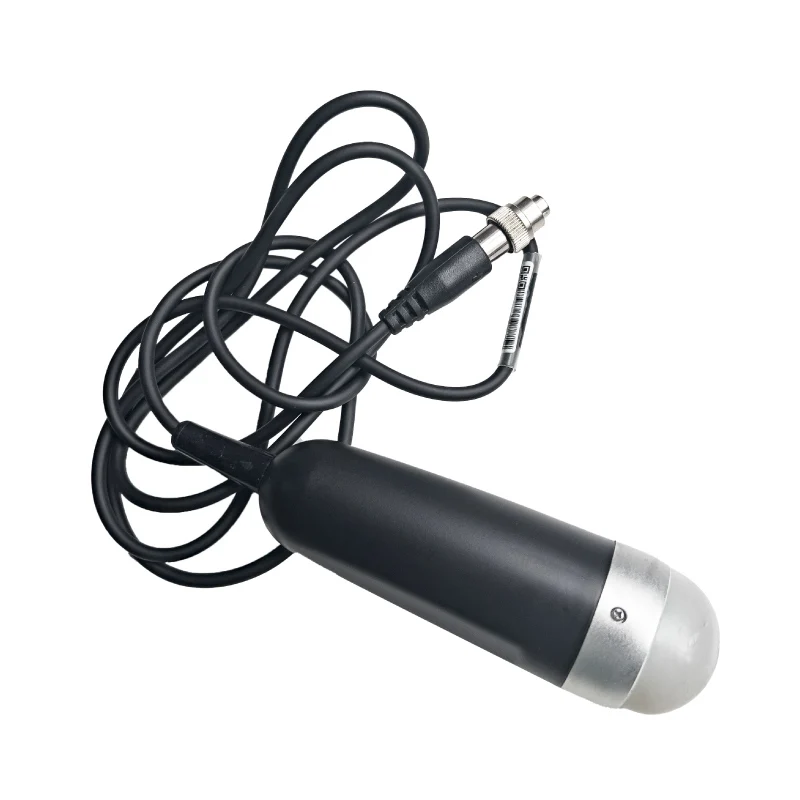

The instrument consists of two parts, the host and the probe. Standard S3/3.5MHz waterproof mechanical sector sweep probe.
1.2 Scope of application
It is suitable for the diagnosis of pigs, horses, cattle, sheep, cats, dogs and other animals.
| Model |
SUN-2600 |
| Probe |
3.5MHz Mechanical Sector Scan |
| Display depth (mm) |
60—190, 14 levels adjustable |
| Resolution (mm) |
Lateral |
≤ 4 (depth ≤ 80);5 ≤ (8 < depth ≤ 130) |
| Axial |
≤2 (depth ≤ 80) |
| Blind area(mm) |
≤ 8 |
| Geometric position Accuracy (%) |
Lateral |
≤20 |
| Axial |
≤10 |
| Monitor size (inches) |
5.6 TFT-LCD |
| Display mode |
B |
| Image gray scale |
256 |
| Image magnification |
*1.0,*1.2,*1.5,*2.0 |
| Graphics storage |
128 |
| Measuring function |
backfat measurement |
| Battery capacity |
3000mAh |
| Host power consumption |
13W for non-charging work/25W for charging work |
| Adapter Power Consumption |
45W |
| Pseudo-color display |
gray, red, yellow, blue
|
